FIRE
NOZZLE

MONITOR NOZZLE (FOG & STRAIGHT TYPE NOZZLE)

It is suitable nozzle to connect and use in fire hydrants or firefighting monitor installed in a fire truck. A quality of product is made with bronze, so a product itself has high corrosion resistance.

  • •Be able to shoot long range
  • •Be able to support large amount of water
  • •Outstanding smooth transition

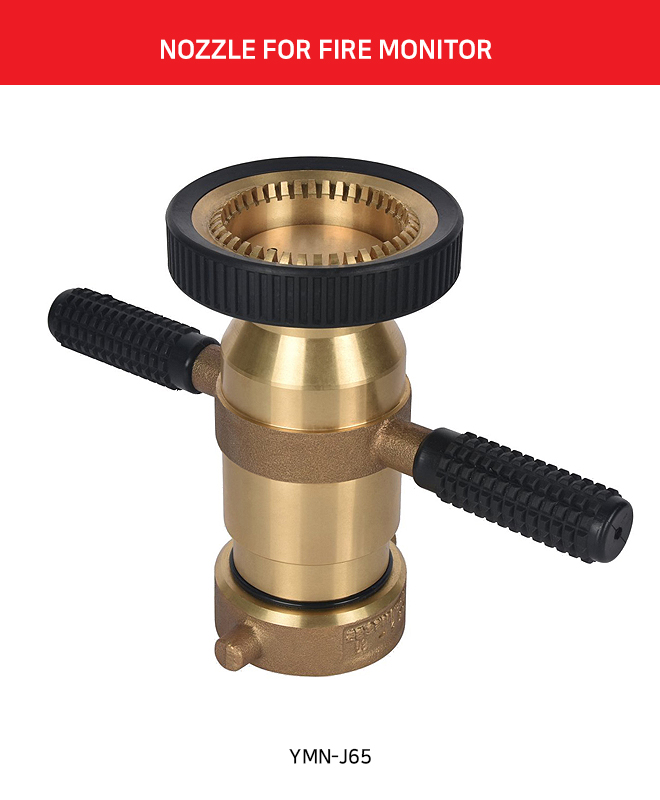

  •  YMN-J65

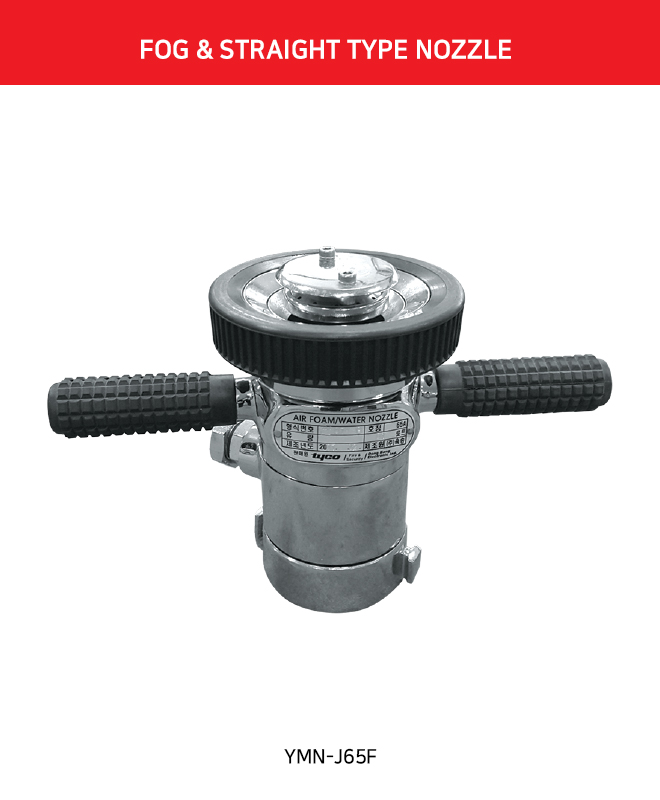

  •  YMN-J65F* For foam concentrate water
SPECIFICATIONS
SPECIFICATIONS
MODEL YMN-J65 YMN-J65F
CONN. SIZE FE65 FE65
FLOW RATE (0.7 MPa) 1420ℓ/min 1420ℓ/min
DISCHARGE TYPE FOG & STRAIGHT
USEABLE LIQUID WATER WATER & FOAM
TEST PRESSURE 2.0 MPa 2.0 MPa
SHOOTING RANGE Approx. 60 m (0,7 MPa) Approx. 60 m (0,7 MPa)
MATERIAL BRONZE
APPROVAL KFI
