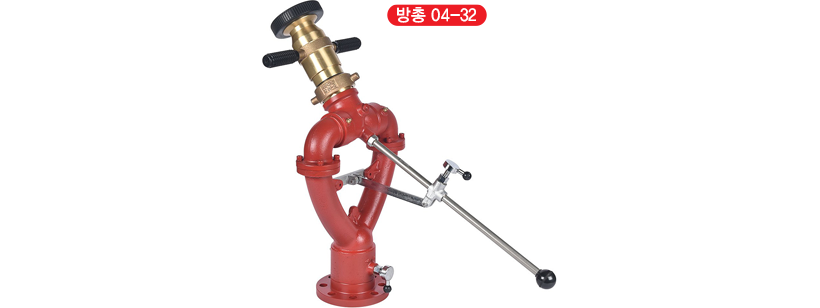

FIRE MONITOR

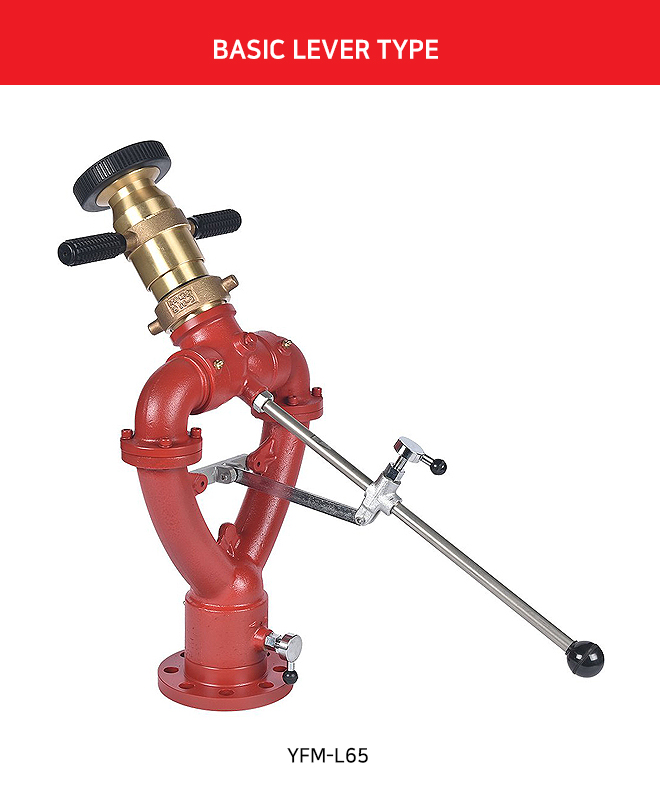

BASIC LEVER TYPE

These two type firefighting monitors are used in an area where firefighters experience difficult access. For example, a multipurpose building, dangerous material storage, outdoor oil tank, liquified gas storage, an aviation shed, chemical factory, etc.


  •  YFM-L65
SPECIFICATIONS
SPECIFICATIONS
MODEL YFM-L65
DRIVING TYPE LEVER
CONN. SIZE 2.5" OR 4"
OUTLET SIZE FE65
MATERIAL(BODY) BRONZE
TEST PRESSURE 2.0 MPa
DRIVING RANGE UP +90°
DOWN -65°
RIGHT/LEFT 360°

*KFI APPROVED
