OUTDOOR FIRE HYDRANT

4″ Underground Hydrant

This underground hydrant is for to install near buildings underground level. To use this product, it must connect with underground hydrant pipe connector to put out a fire.

•

•

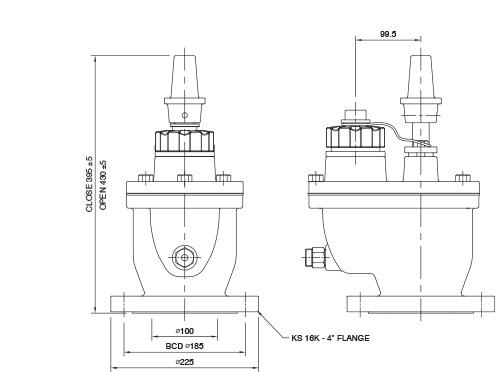

3D MODELING INSTALLATION

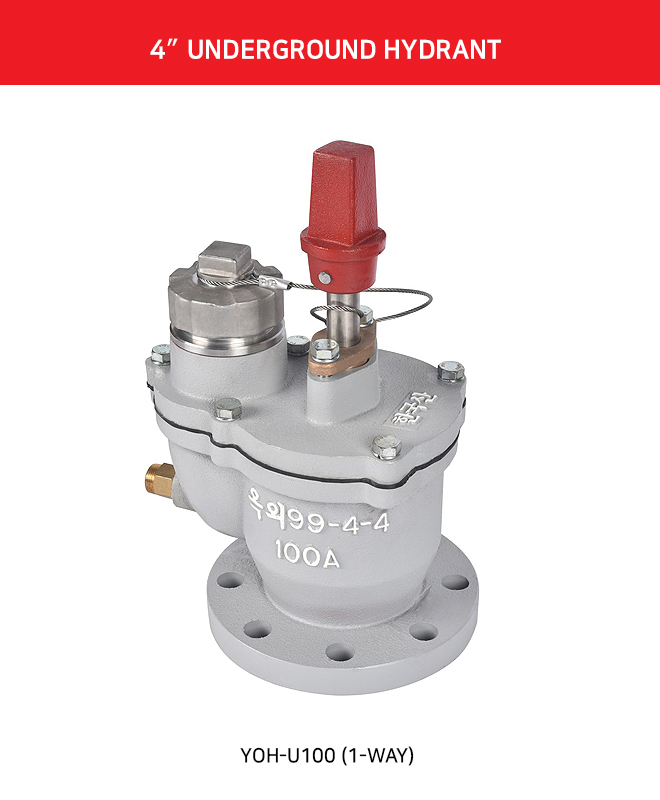

YOH-U100 (1-WAY)

SPECIFICATIONS

TYPE	1-WAY DRY BARREL, ANTI FREEZING, SELF DRAINABLE
INLET CONNECTION	4″ KS B 1511 16K RF FLANGE
HOSE CONNECTION	ONE(1) X FE65 MALE THREAD w/CAP & CHAIN
TEST PRESSURE	2.0 MPa
PAINT	EPOXY PAINT IN BLACK OR GRAY
BODY MATERIAL	CAST IRON OR DUCTILE
CAP MATERIAL	AL-ALLOY
APPROVAL	KFI APPROVED
