DESCENDING LIFE LINE SYSTEM

Descending Life Line

For a safe escape, it is assembled traditional brake lining. It is made with excellent corrosion resistance, abrasion resistance, and water-proof. The safety of the coefficient of friction is high while temperature rises, and then a product is easy to use where children and elder are able to escape from a building without any help of other. The length of rope is different depending on the number of stories.

• • Mainly installed in apartment, hospital, school, hotel, motel, and etc.,

•

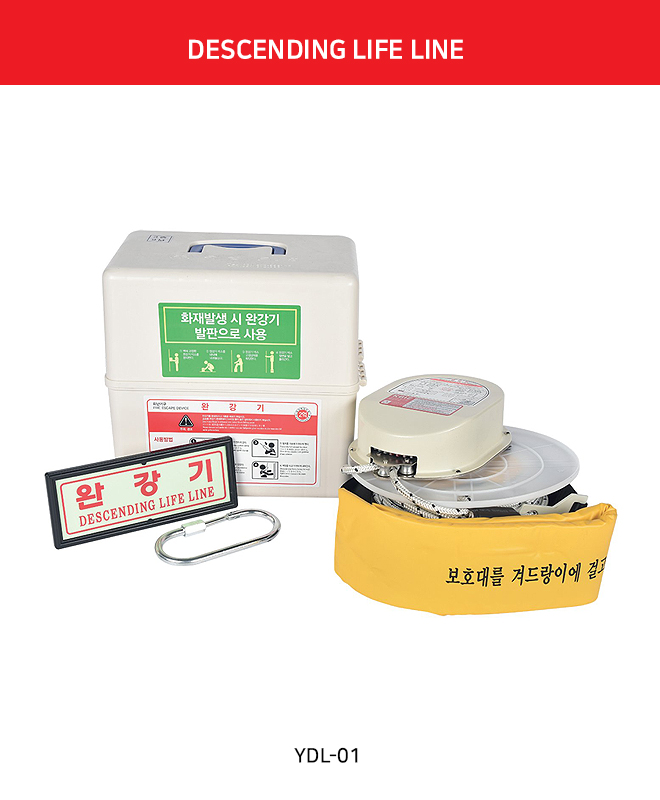

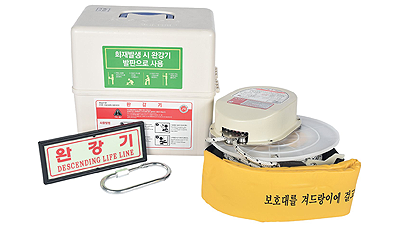

  YDL-01 (완강기)
•

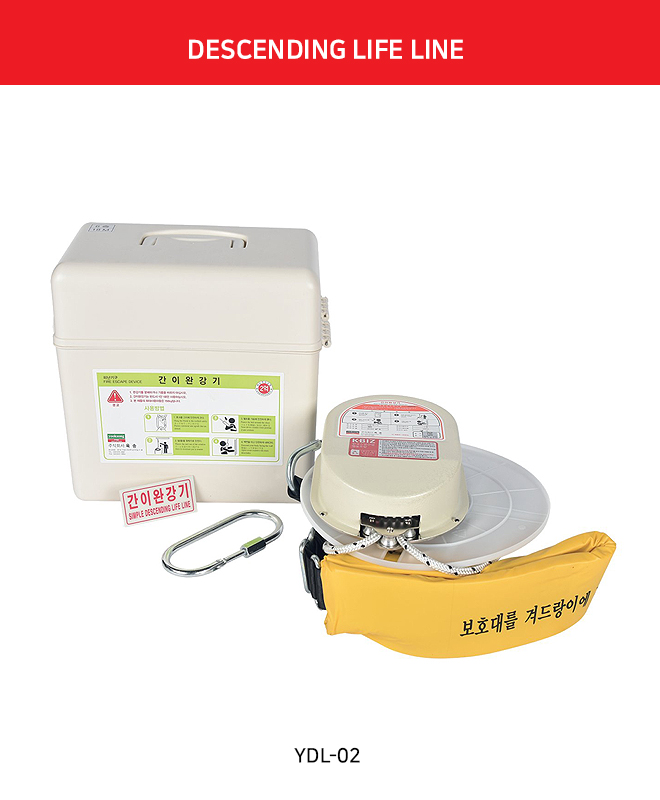

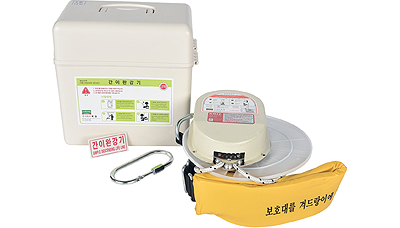

  YDL-02 (간이완강기)

SPECIFICATIONS

SPECIFICATIONS

MODEL	YDL-01	YDL-02
WEIGHT	5.3 kg (BASED ON 15m) PER 3m ± 242 g	5.3 kg (BASED ON 15m) PER 3m ± 242 g
DESCENDING SPEED	70~100 cm/sec.	70~100 cm/sec.
TEST LOAD	390 kg	390 kg
WORKING	150 kg	150 kg
LOAD MAX. NUMBER OF USER	1 person (1 at a time, repeatedly useable)	1 person
APPROVAL	KFI APPROVED	KFI APPROVED

EACH FLOOR FOR LIFE LINE’S LENGTH
