HIGH PRESSURE
FIRE FIGHTING EQUIPMENT

High Pressure Y-Coupling (2-Ways Ball Valve)

It is an item to use when a massive fire occurs such as mountain and high-rise building fire. It is able to hold up to 3.0 MPa pressure. This coupling is usually used when operation needs to spread out two-ways to put out a fire and a product is made with special aluminum alloy that prevents shatter phenomenon.

  • • Ball valve open and closes smoothly, where it able to use a product easier

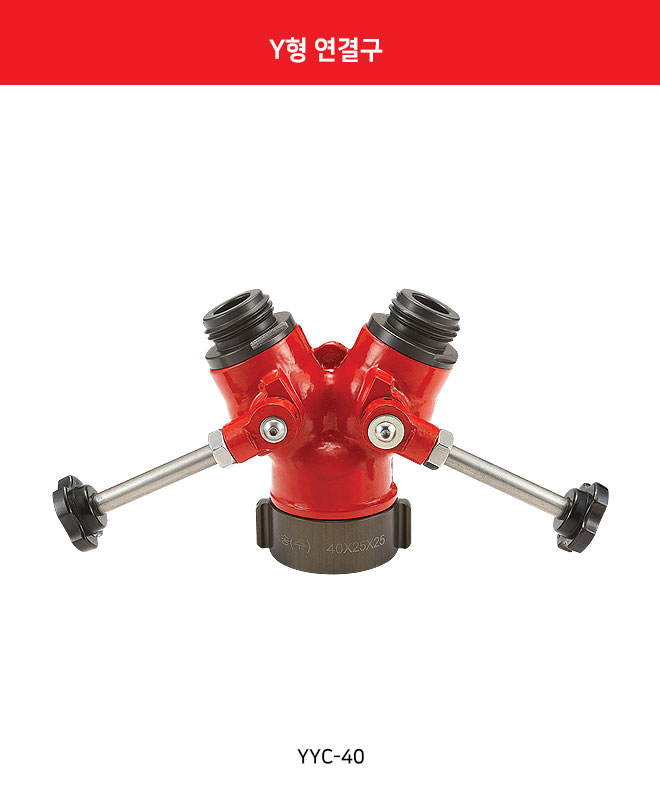

  •  YYC-40

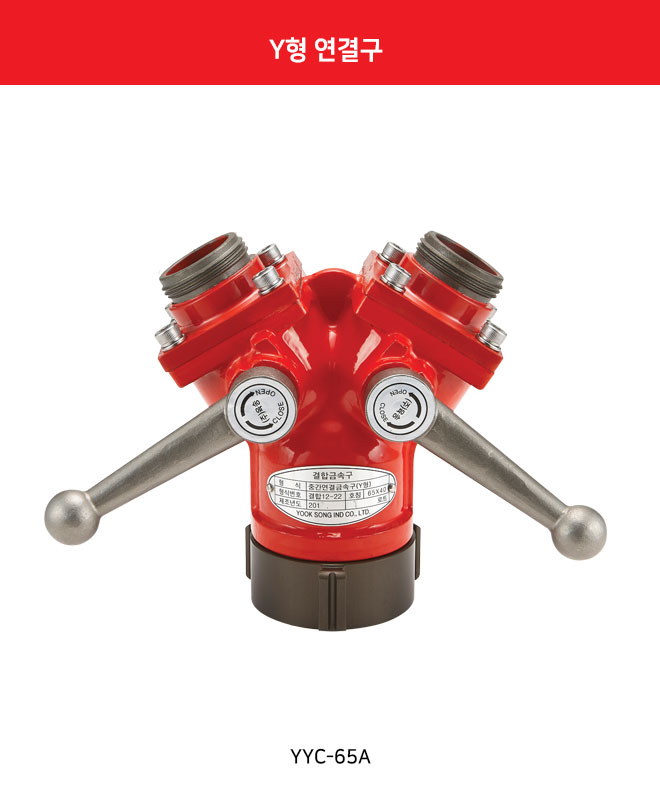

  •  YYC-65A
SPECIFICATIONS
SPECIFICATIONS
MODEL YYC-40 YYC-65A
INLET SIZE FE40 FE65
OUTLET SIZE TWO(2) X FE25 TWO(2) X FE40
OUTLET SIZE Two(2) X FE25 (1″) Two(2) X FE40 (1-1/2″)
USE PRESSURE 3.0 MPa
METERIAL AL-ALLOY
APPROVAL KFI
