HOSE REEL

HOSE REEL DRUM SET

This hose-reel is always reel-in shape and it keeps this shape either using or not. Since our hose-reel have low repulsive-power, this means it can be used easily by a single woman, elders, and a single child. Moreover, our hose-reel is maximized with newest technology and ideas, which makes big difference compare to other company ones.

  • •Specialized to catch an initial fire
  • * A length can be adjusted differently depending on a customer’s request.
  • * Excess Uncoiling Prevention Device, Pressure Gauge, Hose Guide, and Auto Coiling Device are optional.
  • Patent No 10-0666561 / Patent No 10-1483678 / Patent No 10-1577680 / Patent No 10-1689828 / Patent No 10-1692932
  • Patent No 10-1707642 / Patent No 10-1705806 / Patent No 10-1774375 / Patent No 10-1778148 / Patent No 10-1898035
  • Design 30-0561495 / Design 30-0782288 / Design 30-0782287 / Design 30-0853591 / Design 30-0853593
  • Design 30-0847140 / Design 30-0847140 / Design 30-0889877 / Design 30-0894633 / Design 30-0895745
  • Design 30-0953500 / Design 30-0952750 / Design 30-0948552 / Design 30-0943287

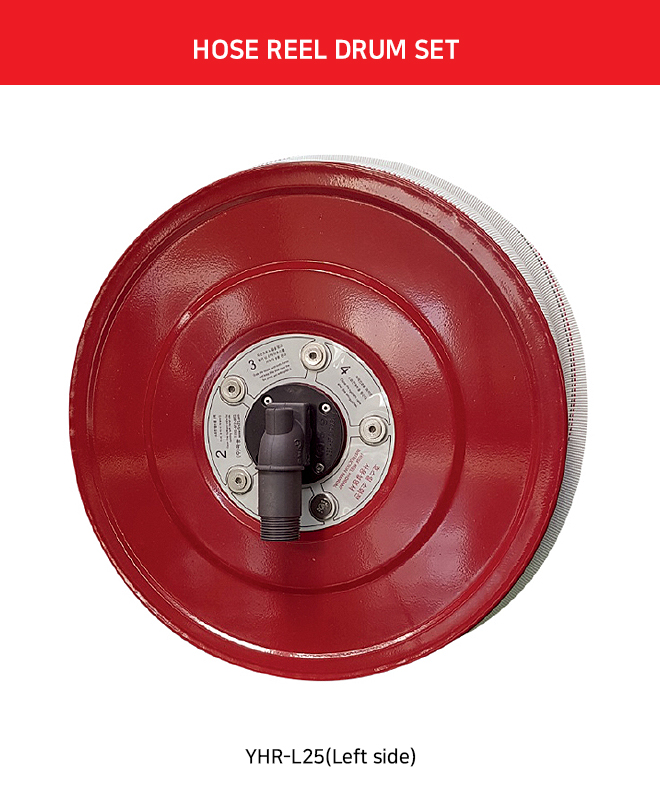

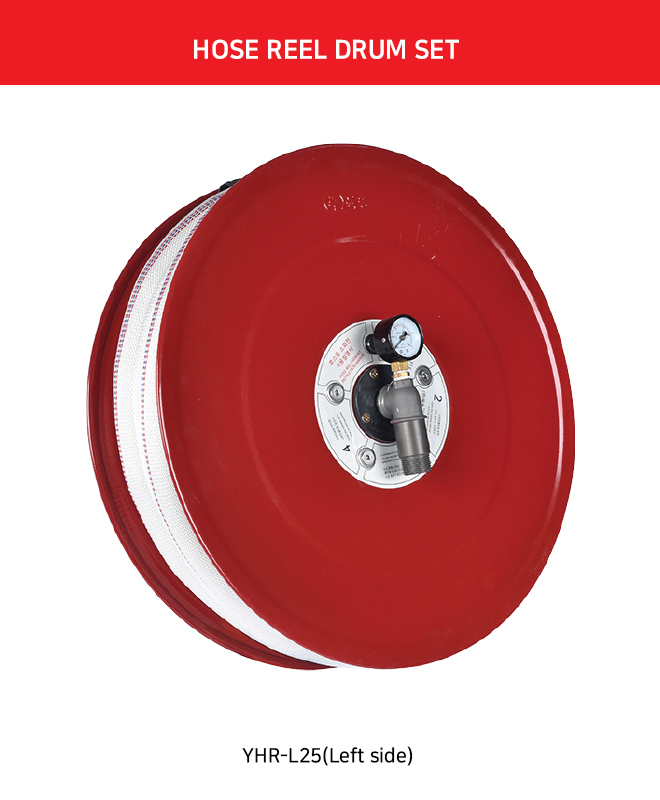

  • YHR-L25 압력게이지 전면 부착형 (특허 등록 / 10-1707642) (Left side)

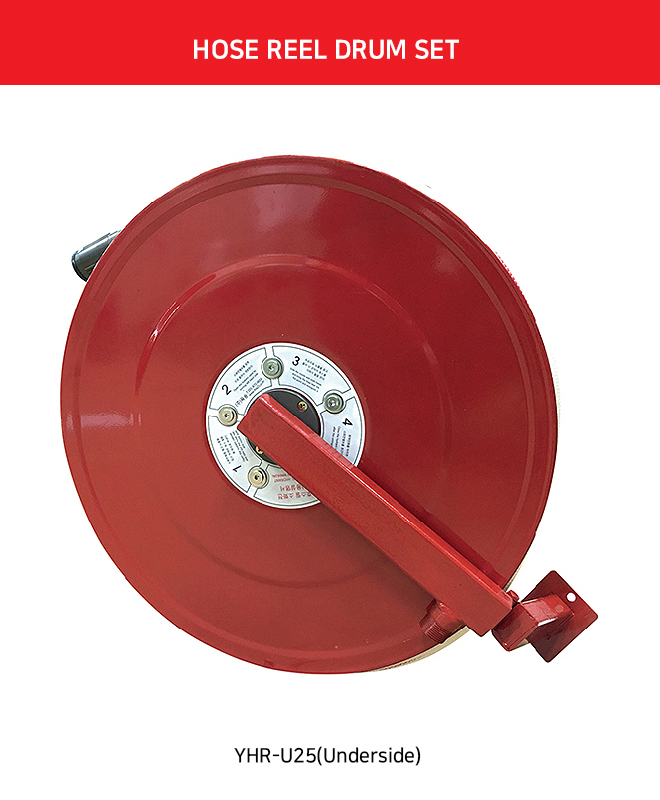

  • YHR-U25 (Under side)
SPECIFICATIONS
SPECIFICATIONS
HOSE LENGTH (m) 15 ~ 50
DRUM SIZE (mm) 420 450 500 550 600
TRIANGLE BRACKET 160 mm 200 mm 225 mm 250 mm 275 mm
UNDERSIDE BRACKET FOLDED 183 mm, SPREADED 535 mm
MATERIAL SS 400 POWDER COATED BY YELLOW, RED. AND IVORY COLOR PLATED
STYLE (ACCESSORY) BASIC, w/ HOSE STOPPER, w/ PRESSURE GAUGE, w/ BOTH TOGETHER
COMPARATIVE TABLE
COMPARATIVE TABLE
Product type Hose-reel hydrant Indoor fire hydrant
Water supply(per unit) 2.6㎥ (maximum 5 units)
Working pressure 0.17 ~ 0.7 MPa
Water flow rate Over 130ℓ/min
Method of storage Always retaining its round shape in the cabinet during usage or storage Be folded
Diameter of Hose 25 mm 40 mm
Horizontal distance Must be Below 25 m
How to use 1. Open the angle valve.
2. Bring the nozzle to the fire spot
3. Open the nozzle and extinguish the fire		 1. Unfold the fire hose and it must be not twisted.
2. Open the angle valve.
3. Open the nozzle and extinguish the fire.
4. After extinguish the fire, drain the fire hose and folding after drying.
Comparison of
Pros and Cons		 Pros 1. All people could handle it easily, especially women, children, and elders.
2. It is always retaining its round shape, so hose can't be twisted.
3. Before bring the nozzle to fire spot, angle valve can be open first.		 1. Its flow rates amount is just little more than hose-reel hydrant.
Cons 1. Its flow rate is just little less than indoor fire hydrant. 1. It is hard to use normal people, especially women, children, and elders.
2. Hose can be twisted easily.
3. Two or more people are required to use it.
