FIRE HOSE

FIRE HOSE

Our regular fire hose jackets are made with two different structure. One-way of jacket structure is plain weave and the other is twill weave. Moreover, inside of fire hose is made with polyurethane which gives our fire hose to have excellent wear resistance, chemical resistance, ozone resistance, and weatherproof.
Standard building, apartment, or condominium usually requires singular jacket and chemical plant, oil plant, plant factory, fire truck, etc.., usually requires double jacket fire hose.

  • •This hose also can be used in agricultural or civil engineering since it is better compared to standard hose made with PVC.

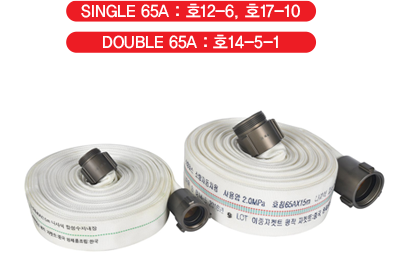

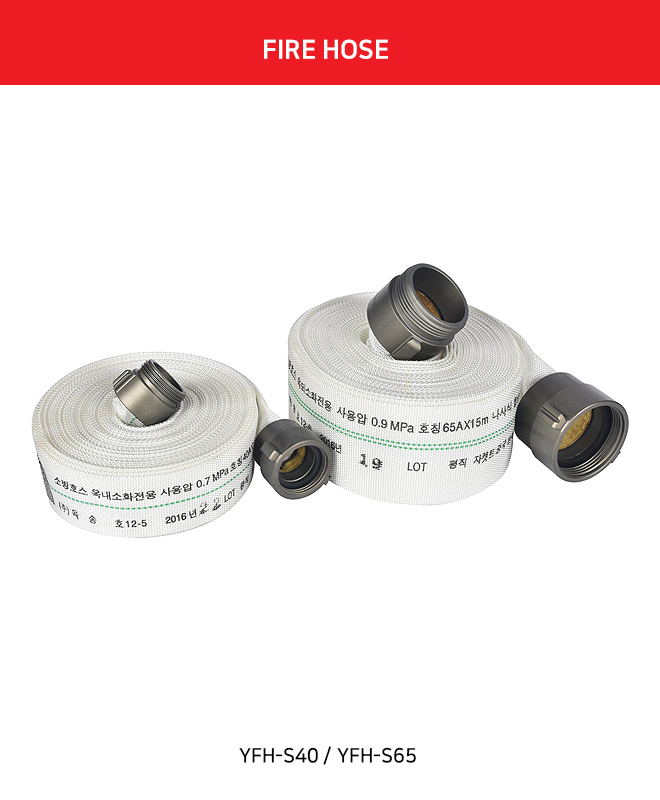

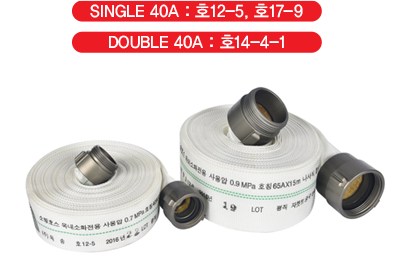

  • YFH-S40 / YFH-S65

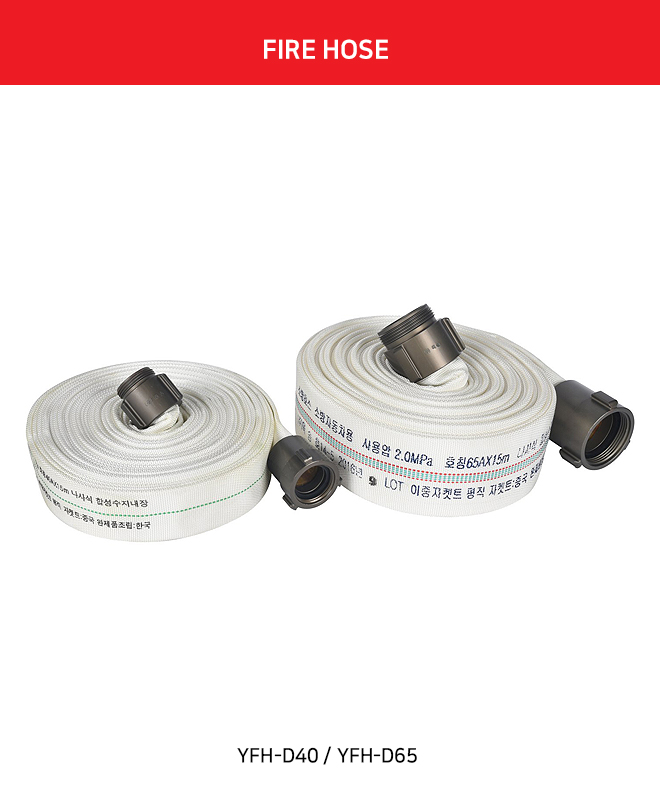

  • YFH-D40 / YFH-D65
SPECIFICATIONS
TYPE LINING URETHANE LINING
JACKET SINGLE DOUBLE
SPECIFICATIONS
MODEL YFH-S40 YFH-S50 YFH-S65 YFH-S100 YFH-D40 YFH-D50 YFH-D65 YFH-D100
SIZE 40A 50A 65A 100A 40A 50A 65A 100A
PRESSURE
(MPa)		 WORK 0.7 0.9 0.9 1.3 2.0 2.0 2.0 1.6
TEST 1.5 1.8 1.8 2.6 4.0 4.0 4.0 3.2
BURST 3.0 3.0 3.0 4.0 6.0 6.0 6.0 4.8
MATERIAL JACKET : POLYESTER FILAMENT YARN
LINING : POLYURETHANE TUBE
COUPLING : AL-ALLOY OR BRONZE
HOSE COUPLING FE / QUICK (MACHINO TYPE)
APPROVAL KFI

* Coupling style : NH, NPSH, CAP-LOCK, BS336, GOST, QUICK (NAKAJIMA)
