FIRE HOSE

ANTI-TWIST FIRE HOSE

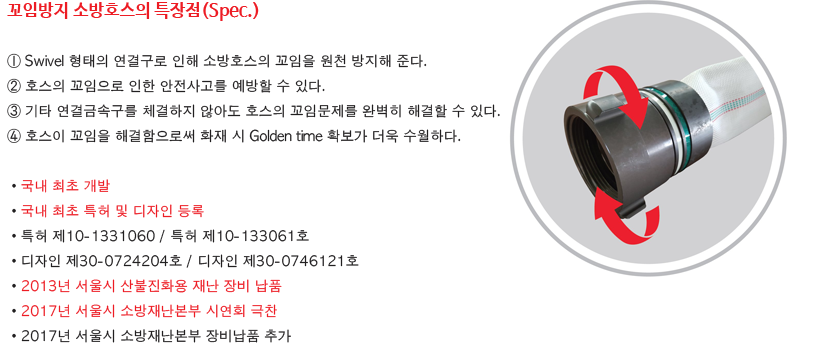

Anti-twist swivel fire hose is totally different compare to orgi inal fire hose. When anti-twist fire hose is connected with water valve, a hose automatically spins around itself because of water pressure and this prevents twist phenomenon.

  • •It saves time because user do not have to worry about twist phenomenon
  • •It prevents accident for user
  • •In operation situation, firefighters can operate faster and easier
  • •With attached axial light and reflective sheet, product can be identified easily to people in any situation. (ex. Smoke room or night time)
  • •Patented Product (Korea)

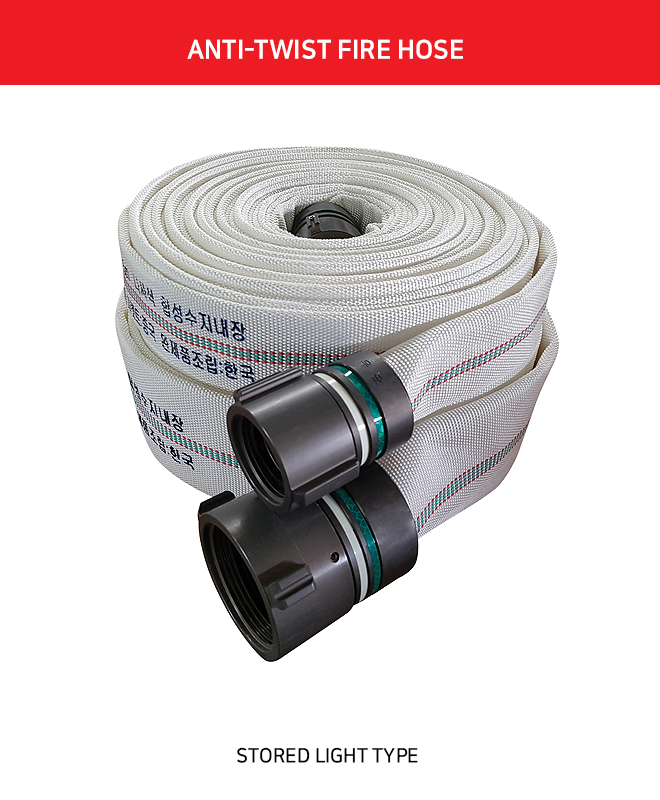

  •  STORED LIGHT TYPE

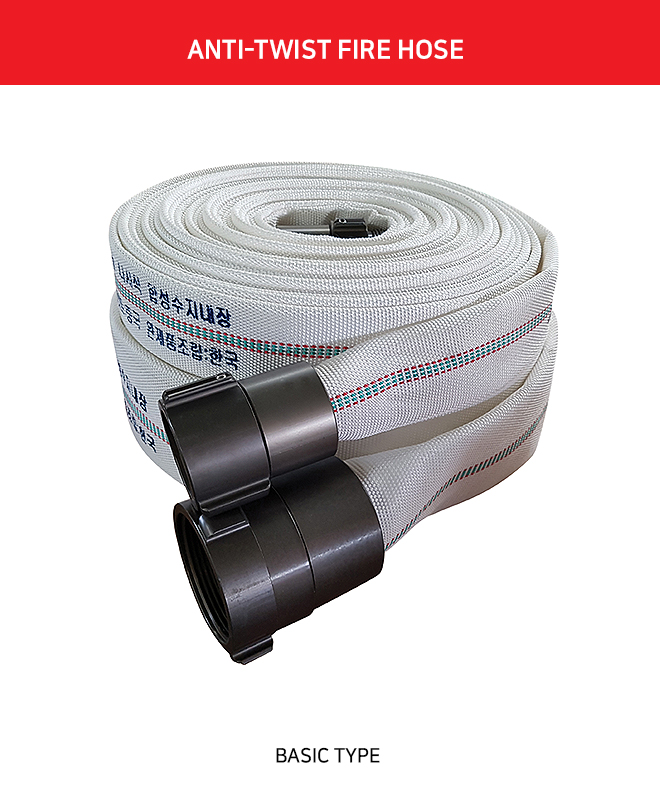

  •  BASIC TYPE

SPECIFICATIONS
SPECIFICATIONS
TYPE DOUBLE JACKET HOSE
MODEL YFH-D40AT YFH-D50AT YFH-D65AT YFH-D100AT
SIZE 40A 50A 65A 100A
PRESSURE (MPa) WORK 2.0 2.0 2.0 2.0
TEST 4.0 4.0 4.0 4.0
BURST 6.0 6.0 6.0 6.0
MATERIAL JACKET : POLYESTER FILAMENT YARN
LINING : POLYURETHANE TUBE
COUPLING : AL-ALLOY OR BRONZE
HOSE COUPLING FE / QUICK (MACHINO TYPE)
APPROVAL KFI

* Coupling style : NH, NPSH, CAP-LOCK, BS336, GOST, QUICK (NAKAJIMA)
