FIRE VALVE & CONNECTOR

Fire Department Connection

This apparatus is to supply fire water from outside of a building to an indoor fire facility.

  • •Fire Department Connection’s seat is built as spring check valve structure which prevents counter flow.
  • •Outlet connection product does not require any system to prevent counter flow
  • •These connectors can be installed two different types, exposure-type or bury-type.

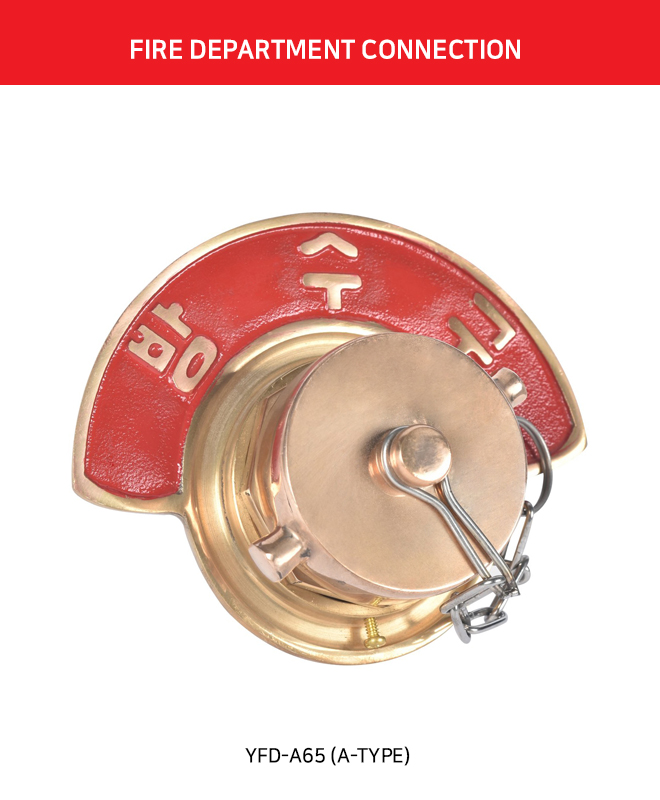

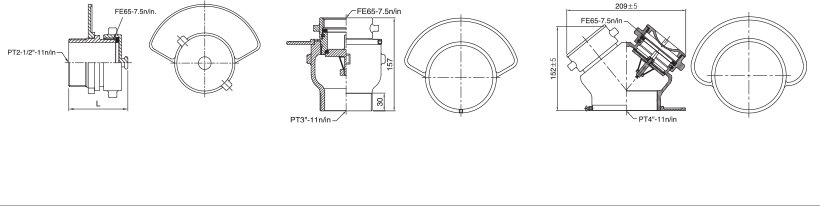

  •  YFD-A65 (A형/ 방수구)

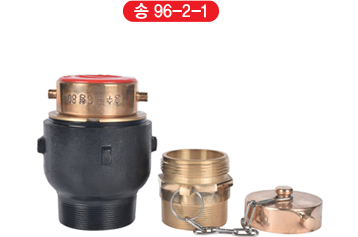

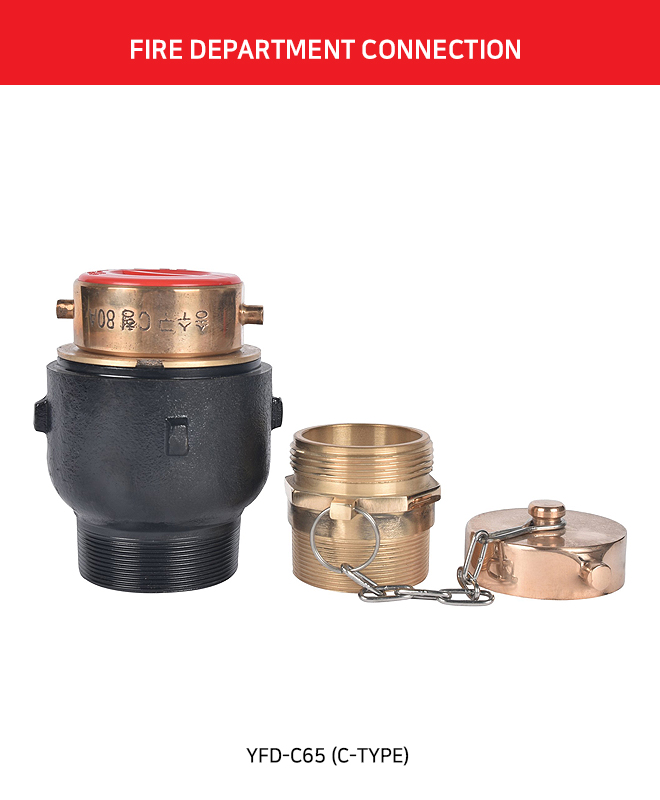

  •  YFD-C65 (C형)

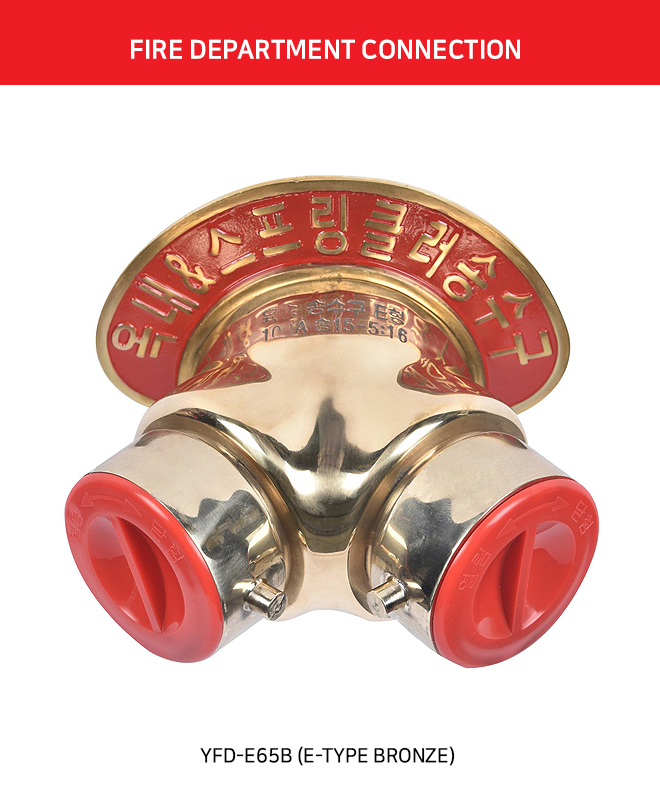

  •  YFD-E65B (E형 BRONZE)

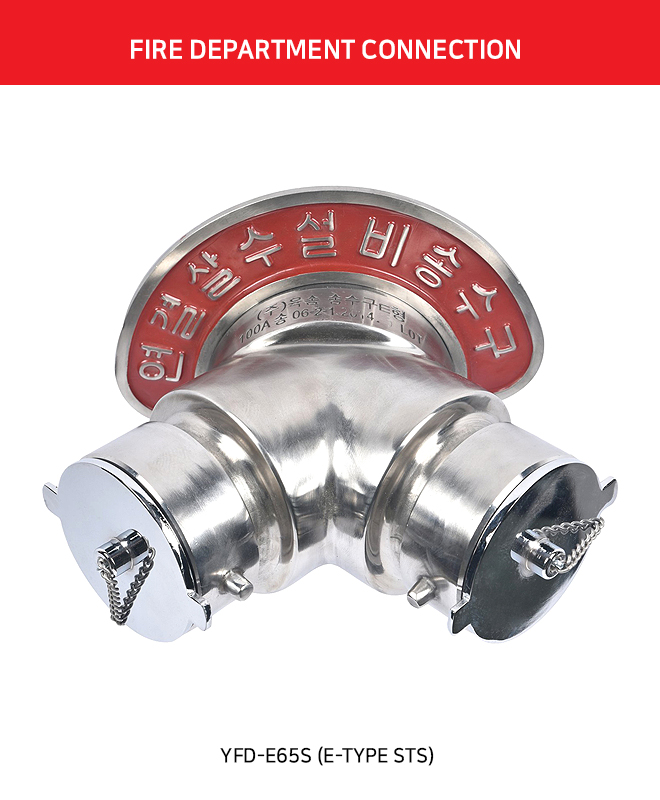

  •  YFD-E65S (E형 STAINLESS STEEL)

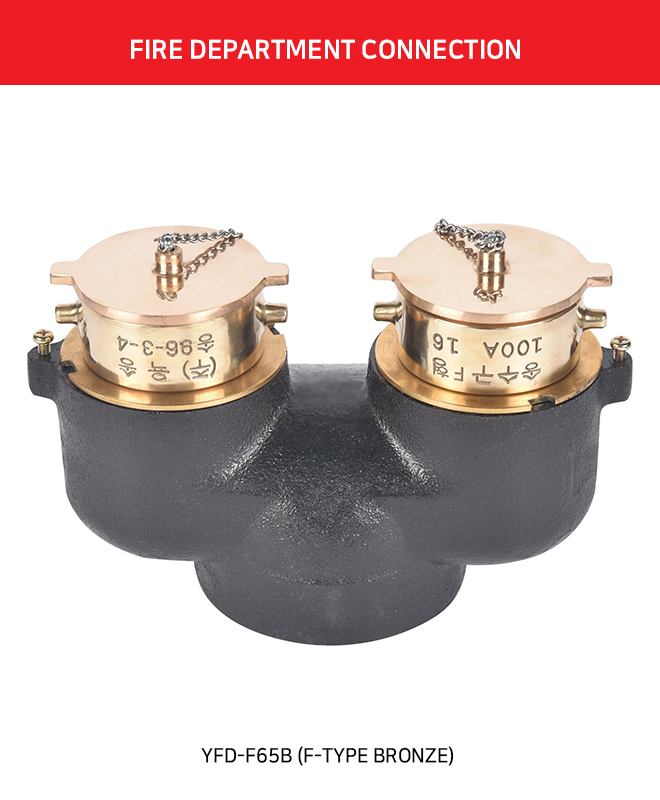

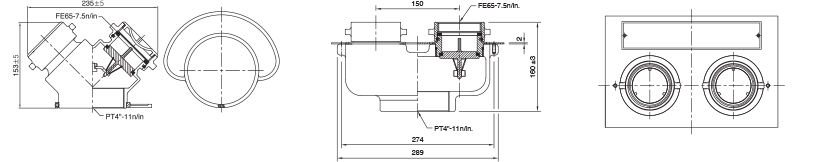

  •  YFD-F65B (F형 BRONZE)

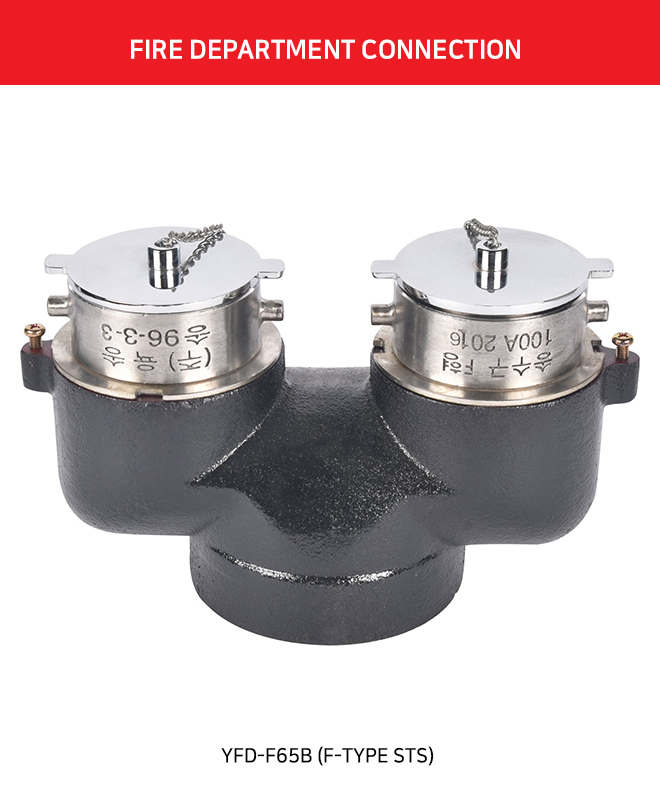

  •  YFD-F65S (F형 STAINLESS STEEL)

SPECIFICATIONS
SPECIFICATIONS
MODEL YFD-A65 YFD-C65 YFD-E65B YFD-E65S YFD-F65B YFD-F65S
CONN. SIZE ONE(1) X FE65(MALE) ONE(1) X FE65(FEMALE) TWO(2) X FE65
(FEMALE)		 TWO(2) X FE65
(FEMALE)
OUTLET SIZE PT 2½ (MALE) PT 3 (MALE) PT 4″ (FEMALE) PT 4″ (FEMALE)
MATERIAL BRONZE CAST IRON & BRONZE BRONZE STAINLESS STEEL CAST IRON & BRONZE CAST IRON & STAINLESS STEEL
APPROVAL KFI
