FIRE VALVE & CONNECTOR

Indoor Hydrant / Angle Valve

This valve is for an indoor fire hydrant cabinet. It should be installed inside of cabinet to connect fire hose to discharge water whenever needed.

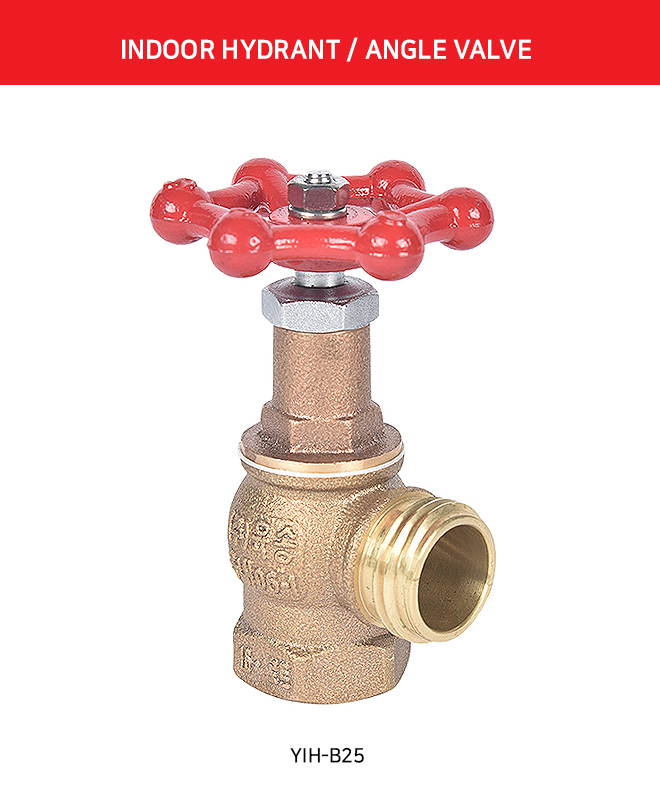

• YIH-B25

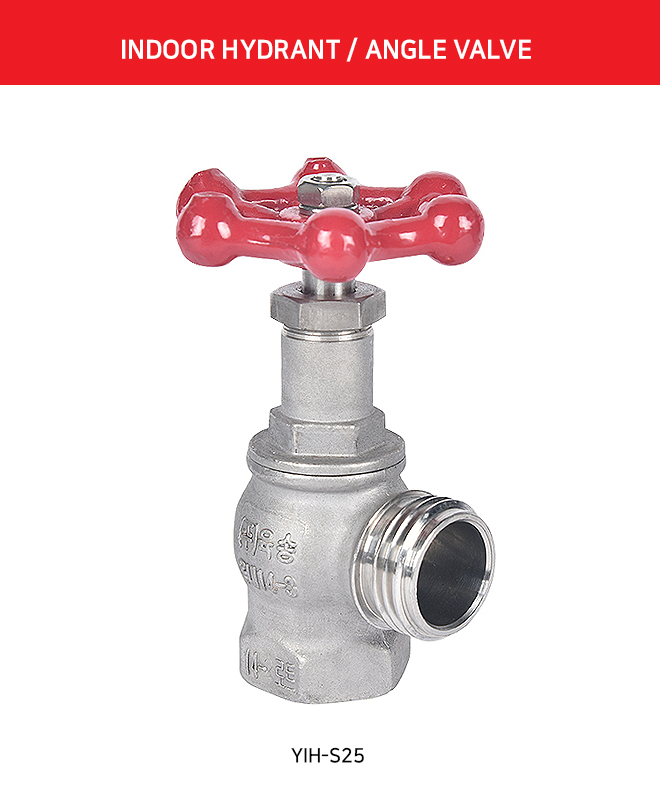

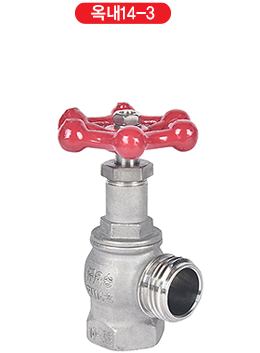

• YIH-S25

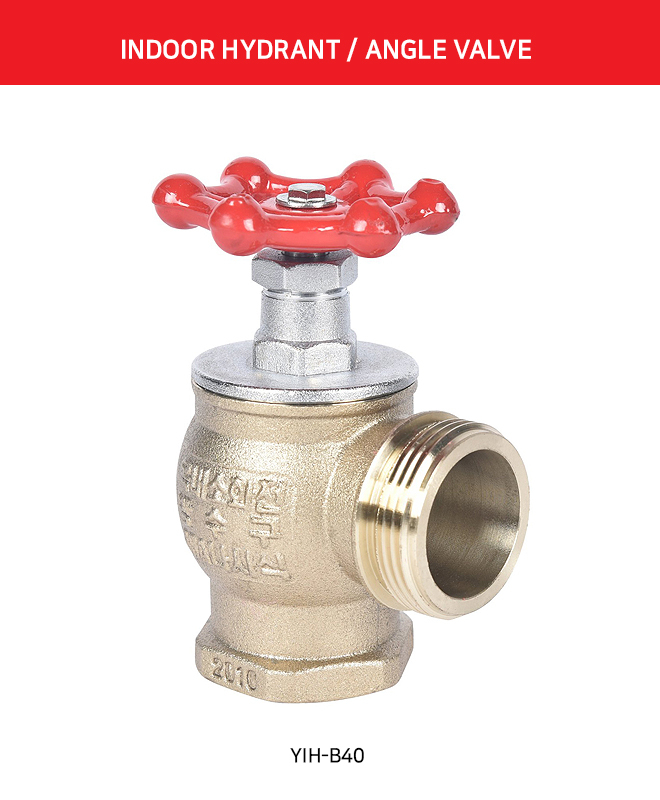

• YIH-B40

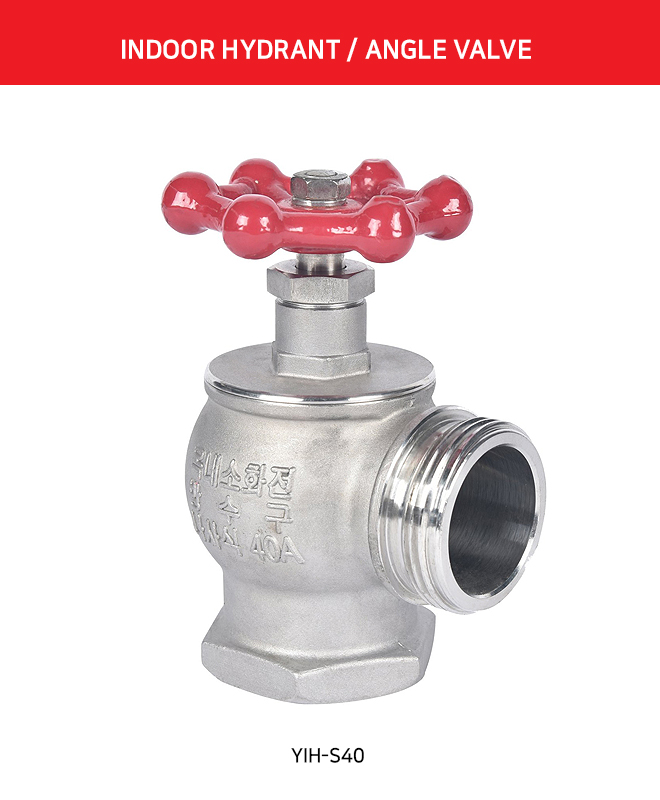

• YIH-S40

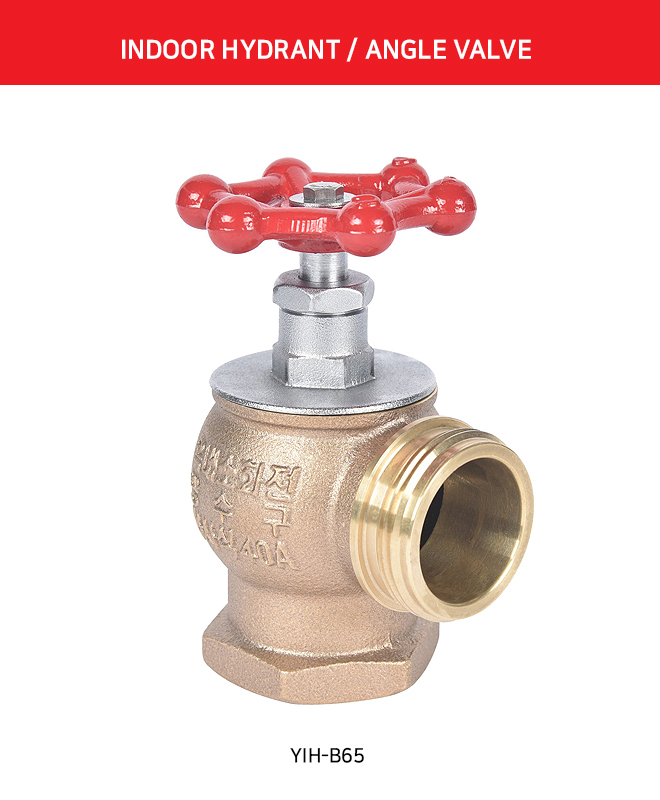

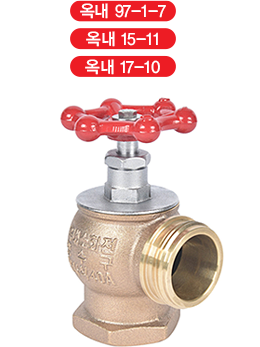

• YIH-B65

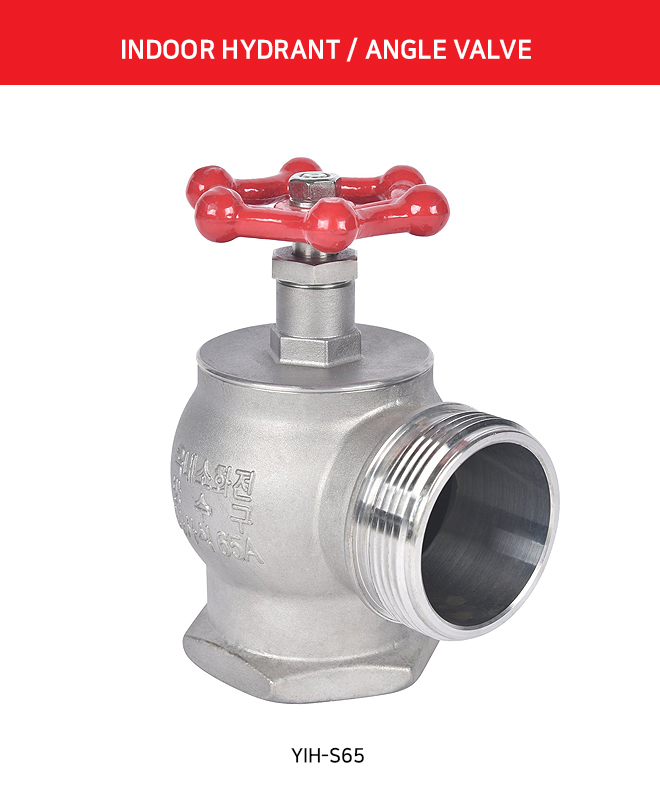

• YIH-S65

SPECIFICATIONS

SPECIFICATIONS

MODEL		YIH-B25	YIH-S25	YIH-B40	YIH-S40	YIH-B65	YIH-S65
PIPE CONN. SIZE		PT 1″	PT 1″	PT 1½″	PT 1½″	PT 2½″	PT 2½″
HOSE CONN. SIZE		FE25	FE25	FE40	FE40	FE65	FE65

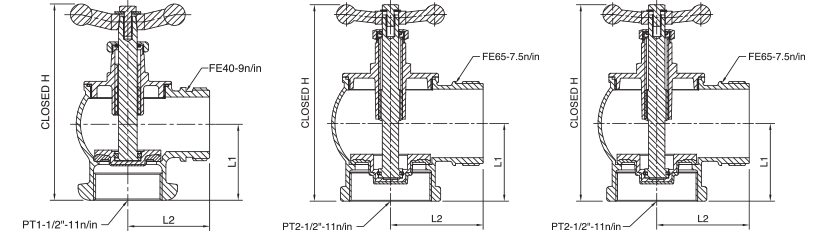

DIMENSION	CLOSED H	125	127	137	137	180	180
	L1	37	37	53	53	72	72
	L2	42	42	57	57	85	85
TEST PRESSURE		2.0 MPa
MATERIAL		BRONZE	STAINLESS STEEL	BRONZE	STAINLESS STEEL	BRONZE	STAINLESS STEEL
WEIGHT (Kg)		0.77	0.69	1.24	1.14	2.93	2.57
APPROVAL		KFI
