HOSE REEL

Components of Hose Reel

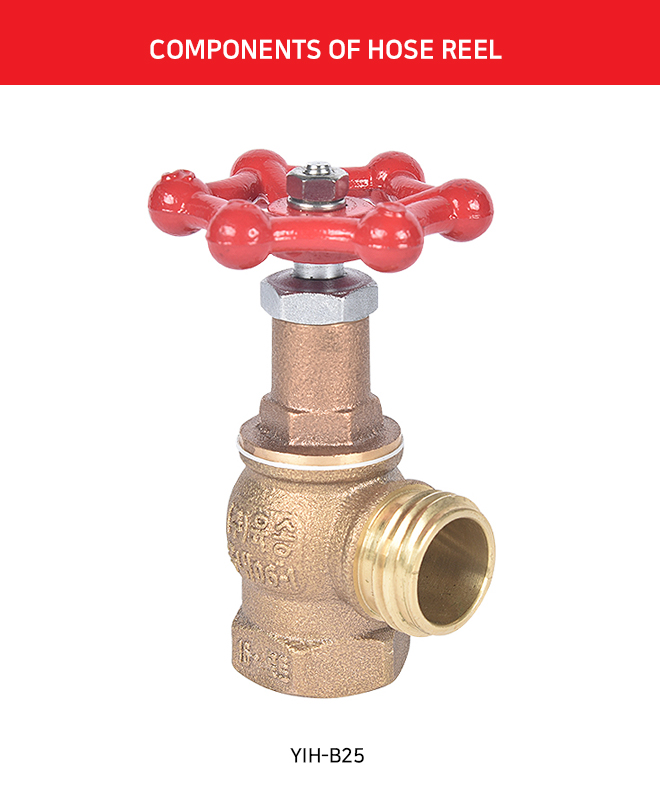

  •  YIH-B25

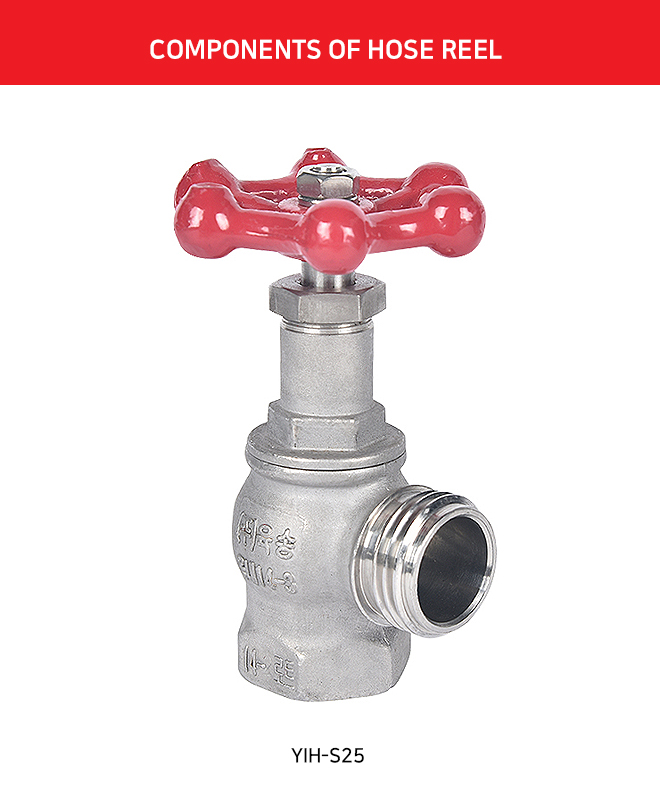

  •  YIH-S25

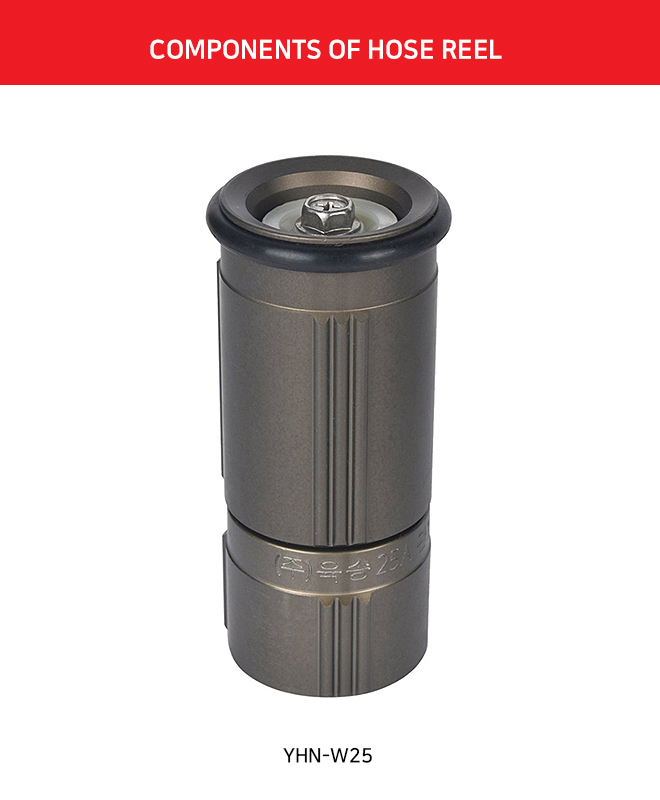

  •  YHN-W25

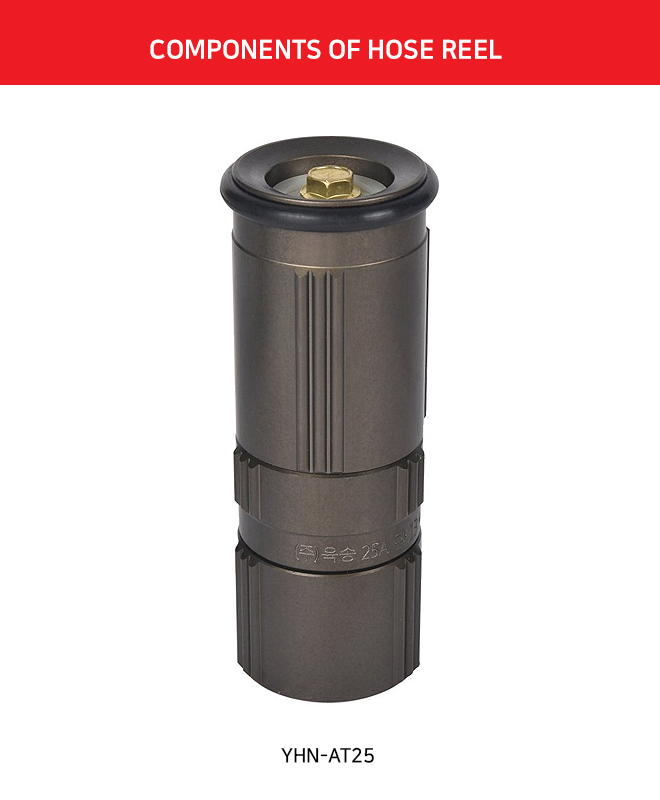

  •  YHN-AT25

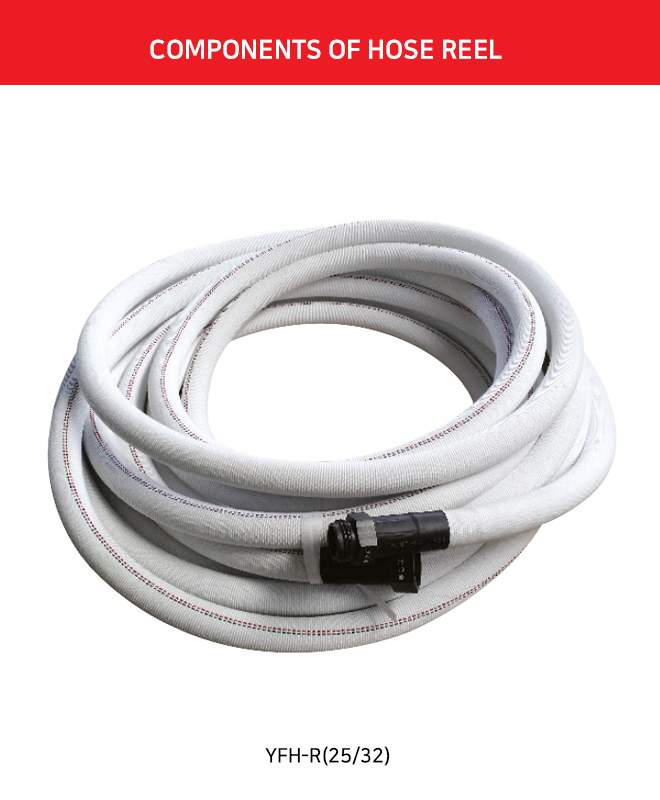

  •  YFH-R(25/32)

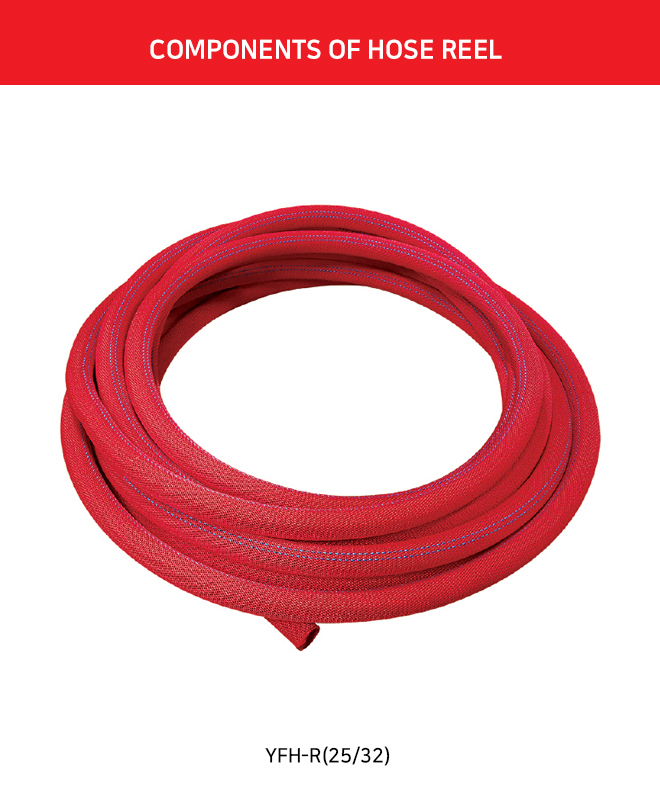

  •  YFH-R(25/32)
SPECIFICATIONS
SPECIFICATIONS
MODEL YIH-B25 YIH-S25 YHN-W25 YHN-AT25 YFH-R(25/32)
SIZE PT 1" x FE25 PT 1" x FE25 FE25 FE25 / FE32
MATERIAL BRONZE STAINLESS STEEL AL-ALLOY POLYESTER & TPN
WEIGHT(kg) 0.77 0.69 0.29 0.38 -
TEST PRESSURE SEAT 1.5 MPa 1.5 MPa
BODY 2.0 MPa
WORKING PRESSURE 1.0 MPa 0.7 MPa
HEIGHT (mm) CLOSED 125 127 105 126 Length : 15~100 (m)
OPENED 145 147 115 135
3D MODELING EXAMPLE
LEFT SIDE UNDERSIDE
