OUTDOOR FIRE HYDRANT

4″ Outdoor Hydrant

This outdoor hydrant is universal product installed near buildings to discharge a fire-water. The connection should use size of 65A.

• •Depend on purpose, it is possible to attach gate valve, ball valve, and glove valve on outdoor hydrant to use

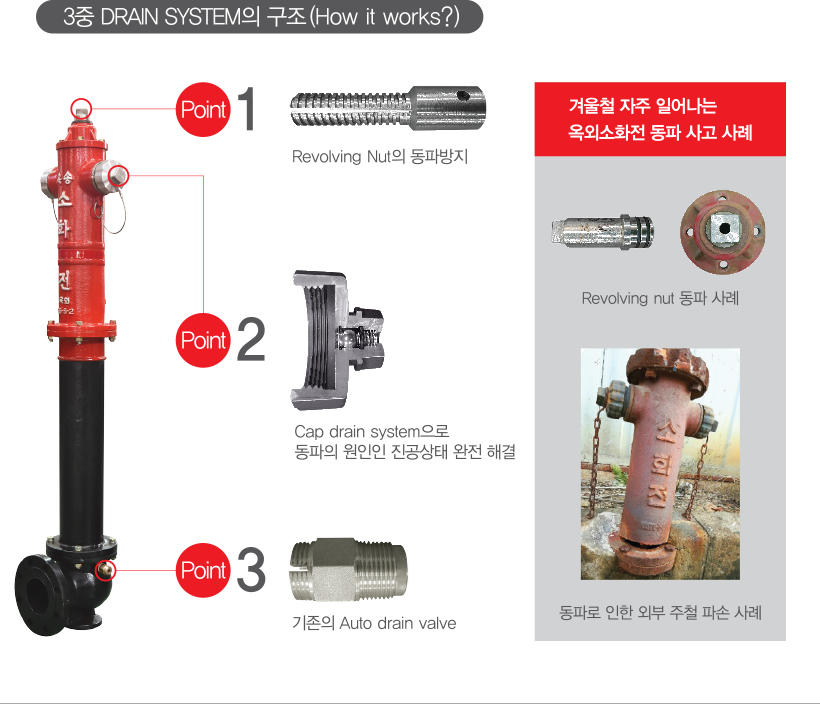

• * It has a special triplication drain system.

•

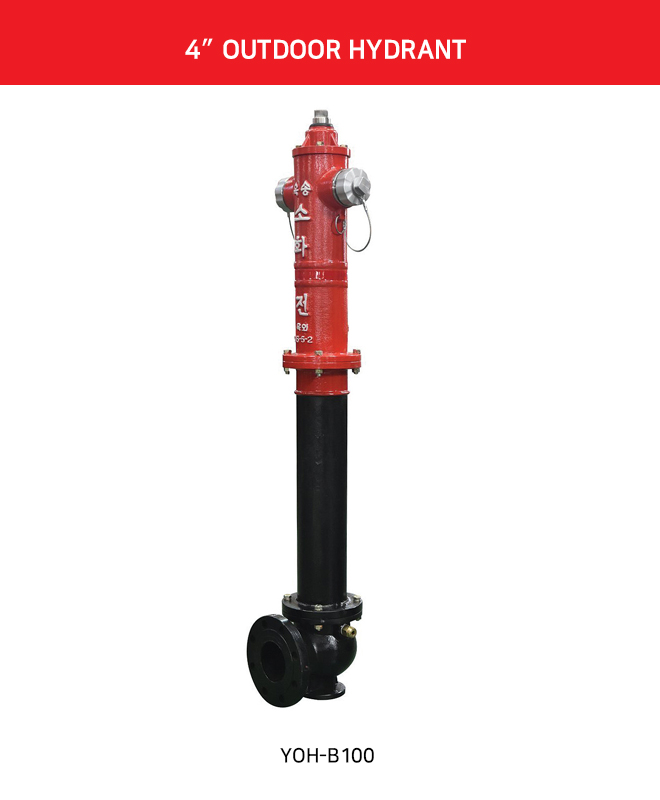

  YOH-B100
•

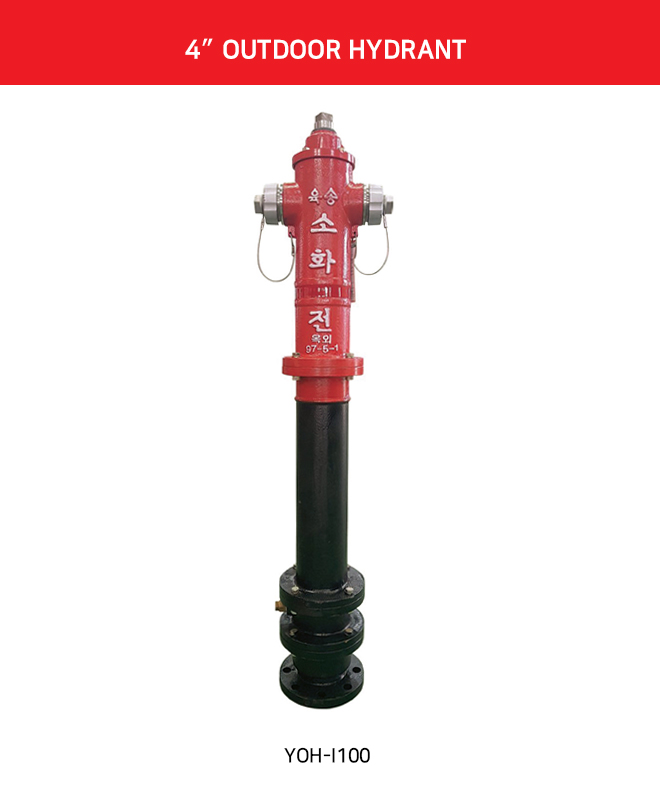

  YOH-I100
•

3D MODELING INSTALLATION

YOH-B100 / YOH-B100L / YOH-I100 (2-WAY)

SPECIFICATIONS

TYPE		2-WAY DRY BARREL, ANTI FREEZING, SELF DRAINABLE
MODEL		YOH-B100	YOH-B100L	YOH-I100
INLET CONNECTION		4″ KS B 1511 16K RF FLANGE
HOSE CONNECTION		TWO(2) X FE65 MALE THREAD w/CAP & CHAIN
TEST PRESSURE		2.0 MPa
PAINT		A.G. - EPOXY PAINT IN RED OR YELLOW U.G. - EPOXY PAINT IN BLACK
BODY MATERIAL		CAST IRON OR DUCTILE
CAP MATERIAL		AL-ALLOY OR BRONZE
APPROVAL		KFI APPROVED
DIMENSION (mm)	G.L	662	1202	750
	H	634	1174	570
	L1	505	505	505
	L2	700	700	700
	T	1362	1902	1450
