FOAM
EQUIPMENT

Line Proportioner

This proportioner item can be connected with fire hose or small foam tank to put out a fire. There is a pick-up tube where it sucks up mixed foam liquid.

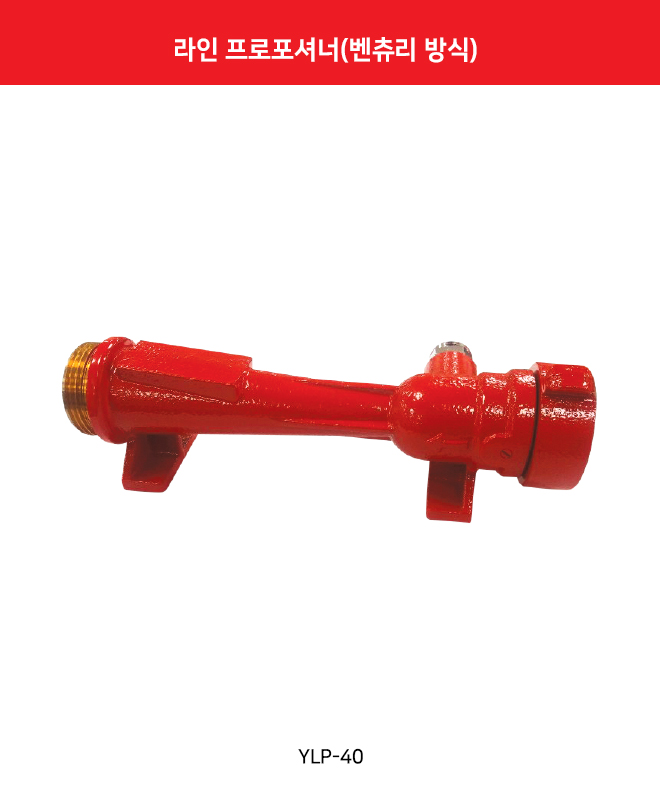

  • YLP-40

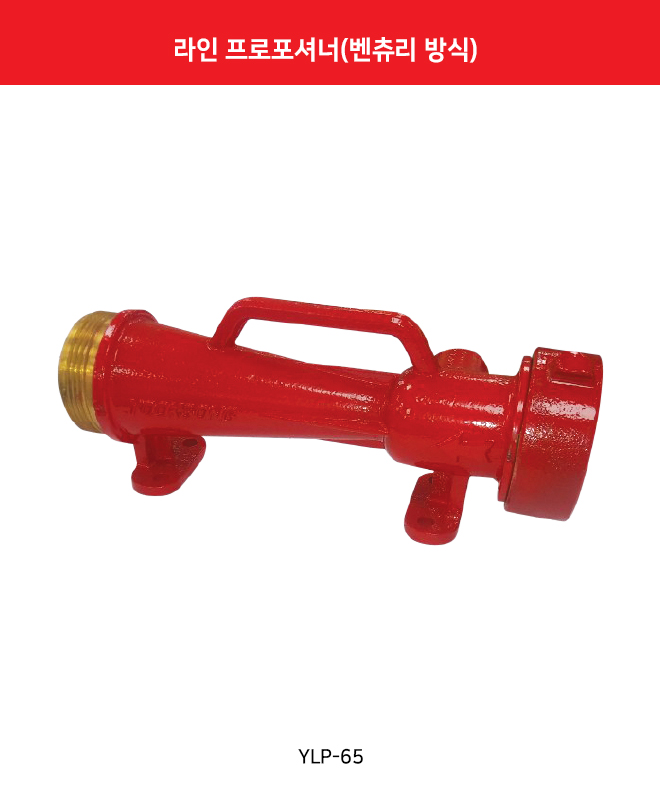

  • YLP-65

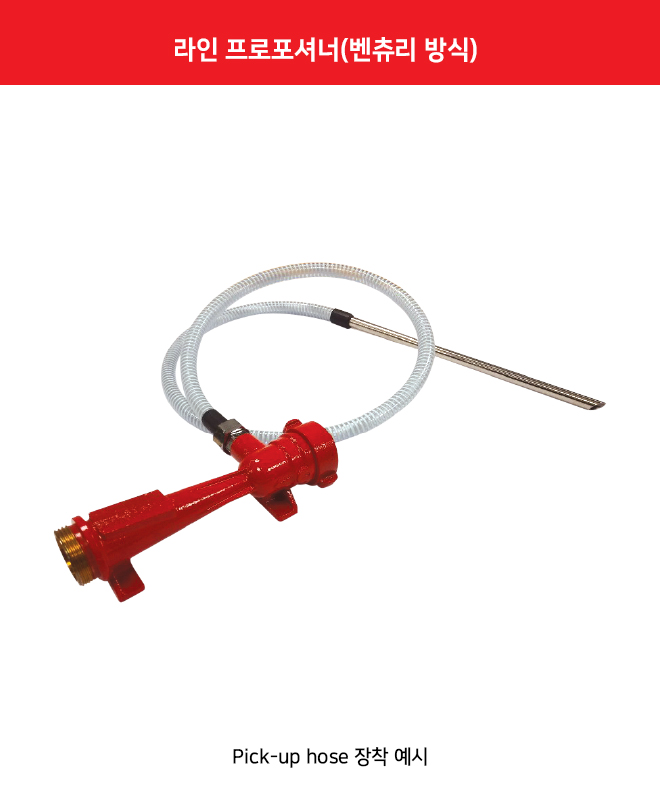

  • Pick-up hose 장착예시
SPECIFICATIONS
MODEL
MODEL CONNECTION SIZE DISCAHRGE CAPACITY
(0.7 MPa)		 TEST PRESSURE MATERIAL
INLET OUTLET
YLP-40 FE40 FE40 120 ~ 180 L/min 2.0 MPa Bronze
YLP-65 FE65 FE65 350 ~ 440 L/min

* Coupling style : NH, NPSH, CAP-LOCK, BS336, GOST, QUICK (NAKAJIMA)
* KFI APPROVAL
